Distributionsblok 63A 4P bund tilgang

PRISGARANTI
50+ stk på lager
Billigste fragt: Levering til din adresse 89,00 kr. (leveres fredag d. 10/5)
Se alle muligheder
MetodePrisLeveres
Levering til din adresse89,00 kr.Fredag d. 10/5
Click&Collect i Svenstrup (9230)0,00 kr.Fredag d. 10/5
Oplyste datoer gælder ved bestilling inden onsdag 15.30
Linergy DX 4P distribution blok 63A 4 moduler, 72mm tilslutning <25mm2 i bund og 24 fjederklemmer i top. Designet til PrismaSet tavler og løsninger til effekt distribution me...
Varenr.:
3321000113
EAN nr.:
3606482164574
Typenr.:
LVS04041
448,00 kr.
pr. stk. | inkl. moms

Relaterede varer

RESI9 Sløjfeskinne 3P+N 12 modul N-L1-L2-L3
97,00 kr.
Overspændingsafleder iPF 20kA, 340V, 3P+N, bolig
483,00 kr.
Resi9 CX Gruppetavle 4 x 13 modul, hvid
350,00 kr.
RESI9 Sløjfeskinne 3P+N 12 modul N-L1-N-L2-N-L3
103,00 kr.
Schneider sløjfeskinne 3P+N 80A 12M bundmontage
97,00 kr.
Sløjfeskinne 4P 100A 12M
206,00 kr.
Resi9 CX Gruppetavle 2 x 13 modul, hvid
210,00 kr.
Resi9 CX Gruppetavle 1 x 13 modul, hvid
161,00 kr.
RESI9 CX dør 4X13 mod hvid
315,00 kr.
Resi9 CX Gruppetavle 3 x 13 modul, hvid
264,00 kr.

Beskrivelse

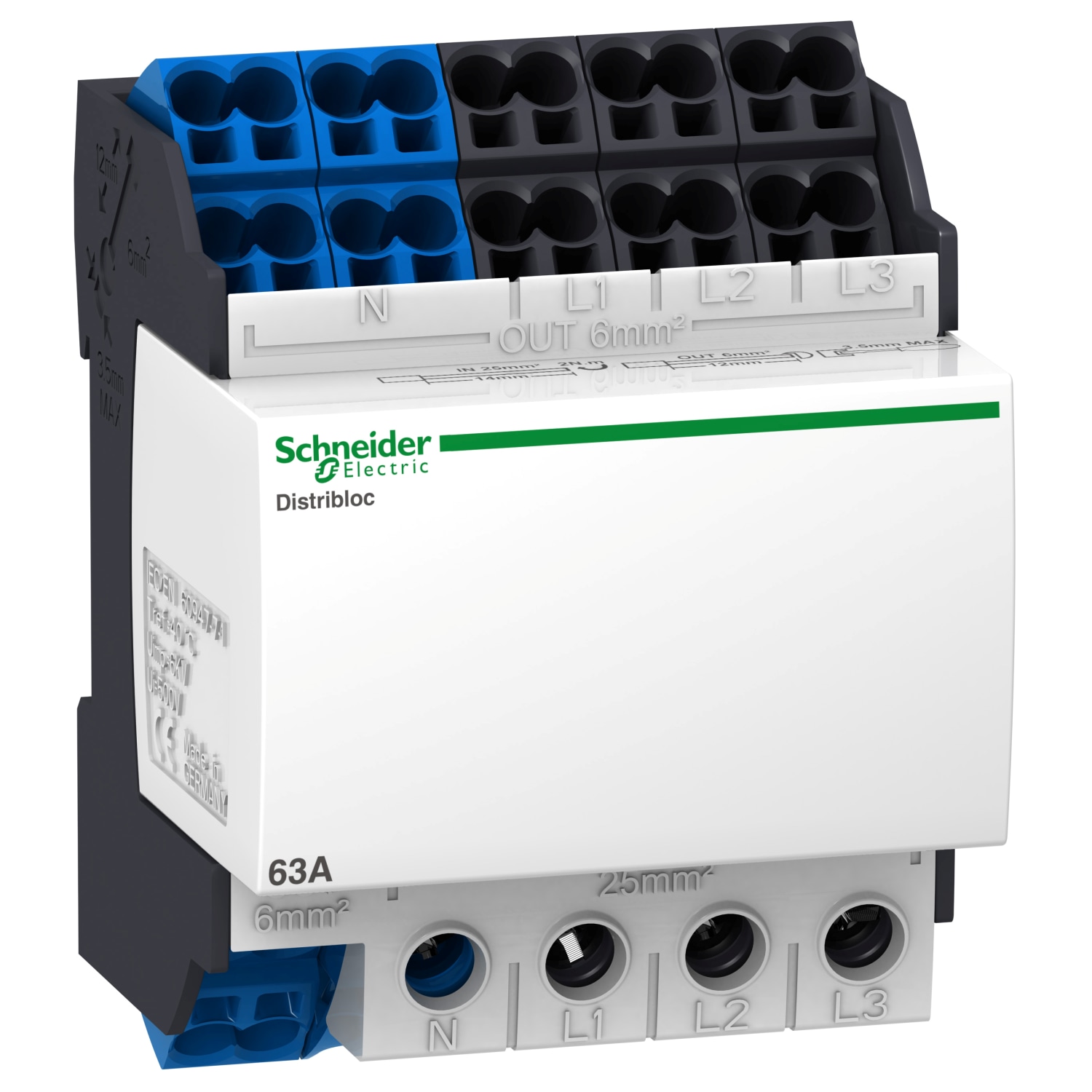

Linergy DX 4P distribution blok 63A 4 moduler, 72mm tilslutning <25mm2 i bund og 24 fjederklemmer i top. Designet til PrismaSet tavler og løsninger til effekt distribution med fjederklemmer for enkelt montage. It is dedicated to 4P installation. It provides tunnel type terminal for the supply circuit with a cable cross section of 16mm2 for flexible cables or 25mm2 for rigid cables. It provides 24 holes for quick connections at the botom of the product. 12 spring terminal outgoers for phase and 12 spring terminal outgoers for neutral are available for distribution part. The allowed cable cross section is comprised betrween 2.5mm2 and 6mm2 for flexible and rigid cables. The Ue rated operational voltage is 440VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The In rated operational current is 63A. It provides IPxx B degree of protection. Its resistance to incandescent wire is 960°C. It is intented for residential or small commercial buildings. Its width takes 4 modules of 18mm. Its weight is 290g. It complies with IEC60947-7-1 and IEC61439-1 standards.

Specifikationer

  • Varenummer:
    3321000113
  • EAN nummer:
    3606482164574
    Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
  • Typenummer:
    LVS04041
    Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
  • Ampere:
    63A
  • Poler:
    4
  • Brand:
    Schneider Electric
