Huawei fusion EV-CHARGER AC 22KW

PRISGARANTI
Midlertidigt udsolgt
Huawei Fusion ladestander - Residential Smart Charger - AC 3 Faset 22kW/32A - SCharger-22KT-S0 Key Feature Green Power Preferred 3 to 1 Automatic Phase Switch One-fits-all AP...
  • Varenr.:
    5478001466
  • EAN nr.:
    5705157302339
  • Typenr.:
    AC charger 3 Phase 22kW/32A
5.565,00 kr.
pr. stk. | inkl. moms

Andre købte også

Måske interessant?

Beskrivelse

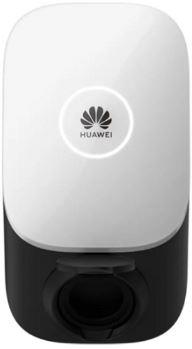

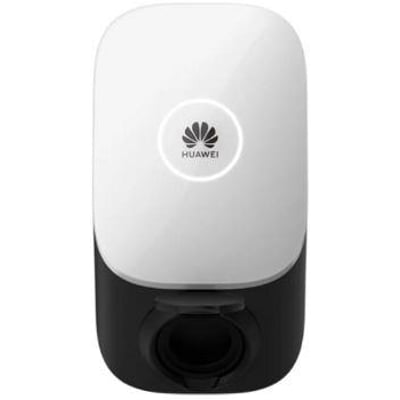

Huawei Fusion ladestander - Residential Smart Charger - AC
3 Faset 22kW/32A - SCharger-22KT-S0

Key Feature
Green Power Preferred
3 to 1 Automatic Phase Switch
One-fits-all APP
3 Ways Authentication
3 Steps Installation
Dynamic Charging Power

Accessories: RFID Card * 2 (Included)

Technical Specification SCharger-22KT-S0
Inputs and outputs
Charge power 1.4 kW to 22 kW (configurable)
Nominal voltage 400 V (3-phase) ± 20%
Nominal current 6–32 A (3-phase or 1-phase)
Nominal frequency 50 Hz/60 Hz ± 1 Hz
Vehicle connection Type 2 socket
Mains supply types TN, TT

Communications :
Protocol Modbus TCP
Wi-Fi / Ethernet
Charger status WRGB LED, App
RFID (ISO-14443-A), App, Bluetooth
Remote control & monitoring : App
Working mode :
Normal Charge
Scheduled Charge
PV Power Preferred

Protection
Residual current protection (RCD) Type A(30mA) + DC 6 mA integrated

Dimensions (HxWxD) 335 mm x 180 mm x 145 mm
Weight 3,1 kg
Enclosure degree IP54
Impact protection level IK10

Standard :
EN 61851-1 2019, IEC 62955:2018, IEC 61008-1 2010, IEC/EN 62196-1.

Specifikationer

  • Varenummer:
    5478001466
  • EAN nummer:
    5705157302339
    Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
  • Typenummer:
    AC charger 3 Phase 22kW/32A
    Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
  • Brand:
    Huawei
