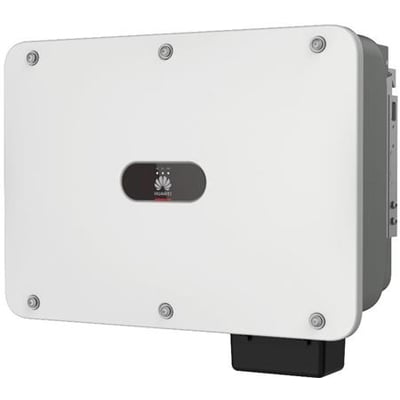

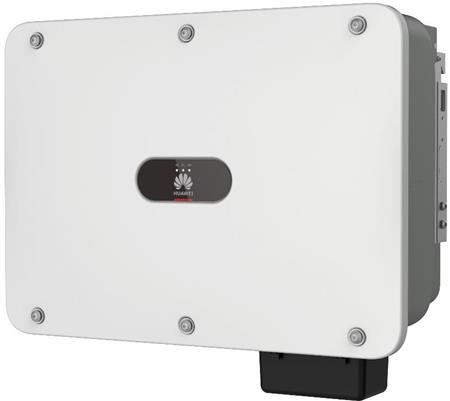

Huawei SUN2000-50KTL-M3 3-faset Smart String Inverter med WLAN, effekt på 50,0kW. 6 MPP tracker. - Dongle er tilkøb, 5 års garanti. Technical Specifications Input : Max.
Varenr.:
5478001223
EAN nr.:
5705157289920
Typenr.:
SUN2000-50KTL-M3
26.435,00 kr.
pr. stk. | inkl. moms
Relaterede varer
Beskrivelse
Huawei SUN2000-50KTL-M3 3-faset Smart String Inverter med WLAN, effekt på 50,0kW. 6 MPP tracker. - Dongle er tilkøb, 5 års garanti.
Technical Specifications
Input :
Max. Input Voltage 1 1,100 V Note *1
Max. Current per MPPT 30 A
Max. Current per Input 20 A
Max. Short Circuit Current per MPPT 40 A
Start Voltage 200 V
MPPT Operating Voltage Range 2 200 V ~ 1,000 V Note *2
Rated Input Voltage 600 V
Number of Inputs 8
Number of MPP Trackers 4
Output :
Rated AC Active Power 50,000 W
Max. AC Apparent Power 55,000 VA
Max. AC Active Power (cosf=1) 55,000 W
Rated Output Voltage 400 Vac / 480 Vac, 3W+(N) + PE
Rated AC Grid Frequency 50 Hz / 60 Hz
Rated Output Current 72.2 A @ 400Vac, 60.1 A @ 480Vac
Max. Output Current 79.8 A @ 400Vac, 66.5 A @ 480Vac
Communication :
Display : LED Indicators, Bluetooth + APP
RS485 : Yes
Smart Dongle : WLAN/Ethernet via Smart Dongle-WLAN-FE (Tilkøb)
Smart Dongle : 4G / 3G / 2G via Smart Dongle-4G (Tilkøb)
Monitoring BUS (MBUS) : Yes (Isolation Transformer required)
General :
Dimensions (W x H x D) 640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)
Weight (with mounting plate) 49 kg (108.1 lb)
Operating Temperature Range -25°C ~ 60°C (-13°F ~ 140°F)
Cooling Method Smart Air Cooling
Max. Operating Altitude 4,000 m (13,123 ft.)
Relative Humidity 0% RH ~ 100% RH
DC Connector Amphenol HH4
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP 66
Topology Transformerless
Standard Compliance
EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
*1 The maximum input voltage is the upper limit of the DC voltage.
Any higher input DC voltage would probably damage inverter
*2 Any DC input voltage beyond the operating voltage range may result in inverter improper operating.
Technical Specifications
Input :
Max. Input Voltage 1 1,100 V Note *1
Max. Current per MPPT 30 A
Max. Current per Input 20 A
Max. Short Circuit Current per MPPT 40 A
Start Voltage 200 V
MPPT Operating Voltage Range 2 200 V ~ 1,000 V Note *2
Rated Input Voltage 600 V
Number of Inputs 8
Number of MPP Trackers 4
Output :
Rated AC Active Power 50,000 W
Max. AC Apparent Power 55,000 VA
Max. AC Active Power (cosf=1) 55,000 W
Rated Output Voltage 400 Vac / 480 Vac, 3W+(N) + PE
Rated AC Grid Frequency 50 Hz / 60 Hz
Rated Output Current 72.2 A @ 400Vac, 60.1 A @ 480Vac
Max. Output Current 79.8 A @ 400Vac, 66.5 A @ 480Vac
Communication :
Display : LED Indicators, Bluetooth + APP
RS485 : Yes
Smart Dongle : WLAN/Ethernet via Smart Dongle-WLAN-FE (Tilkøb)
Smart Dongle : 4G / 3G / 2G via Smart Dongle-4G (Tilkøb)
Monitoring BUS (MBUS) : Yes (Isolation Transformer required)
General :
Dimensions (W x H x D) 640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)
Weight (with mounting plate) 49 kg (108.1 lb)
Operating Temperature Range -25°C ~ 60°C (-13°F ~ 140°F)
Cooling Method Smart Air Cooling
Max. Operating Altitude 4,000 m (13,123 ft.)
Relative Humidity 0% RH ~ 100% RH
DC Connector Amphenol HH4
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP 66
Topology Transformerless
Standard Compliance
EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
*1 The maximum input voltage is the upper limit of the DC voltage.
Any higher input DC voltage would probably damage inverter
*2 Any DC input voltage beyond the operating voltage range may result in inverter improper operating.
Specifikationer
-
Varenummer:5478001223
-
EAN nummer:5705157289920Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:SUN2000-50KTL-M3Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Brand:Huawei
