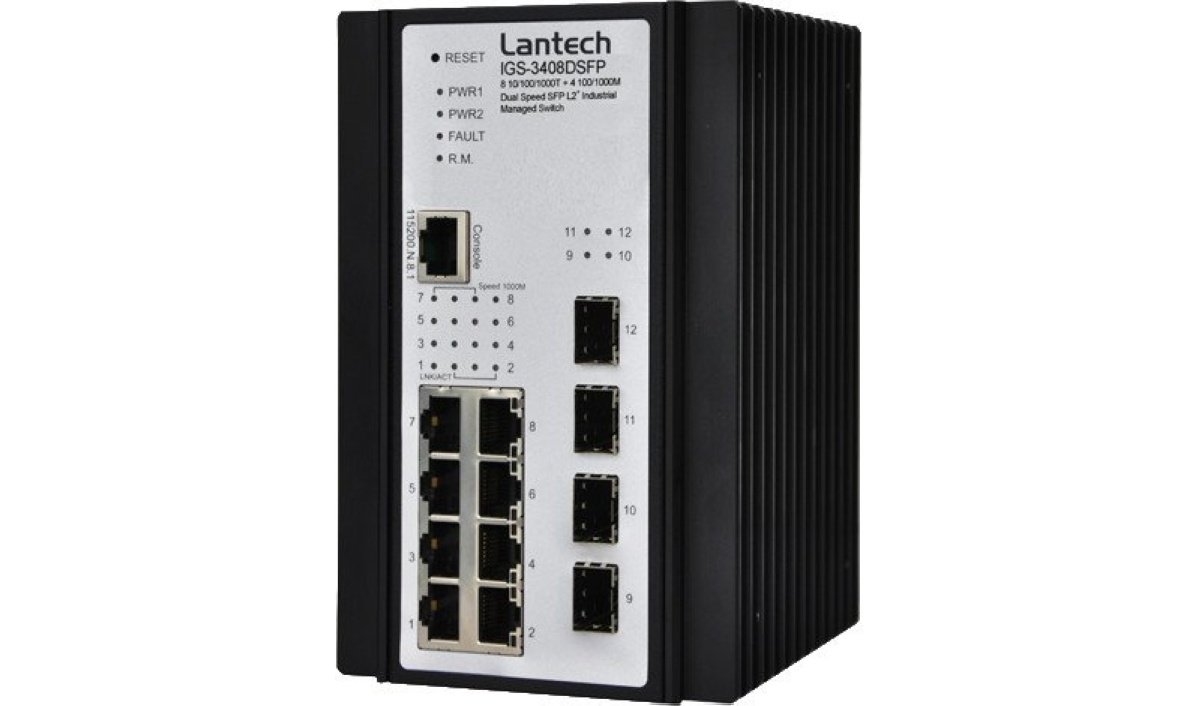

LT IE MG Switch IGS-3408DSFP, 8x100/1000T+4xSFP

LT IE MG Switch IGS-3408DSFP, 8x100/1000T+4xSFP

Managed industri switch med 8 porte 10/100/1000T + 4 Dual Speed SFP L2+ w/ Enhanced G.8032 Ring & PTP. Enhanced G.8032 ring protection < 20ms med auto mode, enhanced mode, train mode og basic mode. Enhanced G.8032 ring dækker multicast pakker, MSTP 16MSTI /RSTP. Understøtter PTP IEEE1588 v2 two-step (under 1 s). Miss-wiring avoidance & Repowered auto ring restore (node failure protection). User friendly UI, inklusive auto topology drawing og DDM threshold monitoring med dB værdier, Complete CLI. Support LACP link aggregation, IGMP v3/router port, DHCP server & DHCP Option82 for Port&VLAN based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH/SSL, HTTPS, ACL, IPv6, SMS. Environmental Monitoring for temp., voltage & current.

Egenskaber:

• 8 10/100/1000T + 4 1000M SFP (Total 12 Ports Switch)
• IEEE 1588 PTP v2 two-step (under 1s)
• Back-plane (Switching Fabric): 24Gbps
• 16K MAC address table
• DDM to support SFP diagnostic function
• Automatisk konvertering af rå data til dB værdier for TX power/RX power, hvilket gør det nemmere at måle fiber afstand
• 10KB Jumbo frame understøttes på alle porte
• User friendly UI, auto topology drawing, topology demo, complete CLI for professional setting
• ITU G.8032 Ring protection i 20ms < 256 switches
• Support various ring/chain topologies, including double ring
• Ring protection coverage data og multicast pakker
• Auto ring configuration(auto mode) for single ring
• Co-exist med RSTP på forskellige porte
• Dual DC input fra 18V~57VDC, HV model med single 90~305VAC eller 120~430VDC power input
• Provides EFT protection ±4000 VDC for power line.
• Supports ±6000 VDC Ethernet ESD protection
• LACP load balancing to distribute the load
• Built-in RTC (Real Time Clock) to keep track of time
• Supports IEEE 802.1p Class of Service, per port provides 8 priority queues Port base, Tag Base og Type of Service Priority
• IEEE 802.1d STP, IEEE 802.1w RSTP,802.1s MSTP VLAN redundancy
• 4K 802.1Q VLAN, Port based VLAN, GVRP, QinQ
• Supports IEEE 802.1ab LLDP, Cisco CDP, LLDP info kan ses via Web/ Console/ LantechTM InstaConfig/ LantechTM InstaView
• DHCP server / client / Port&Vlan based DHCP distribution / DHCP Option 82 supported
• Bandwidth Control
• Ingress packet filter og egress rate limit
• Broadcast/multicast packet filter control
• Relay alarm output system events
• Miss-wiring avoidance
• LED indicator
• Email, traps, eller SMS notification
• Repowered auto ring restore
• Sikre at switchene i en ring overlever efter power breakout er tilbage
• Status kan vises i NMS når hver switch er tilbage
• TFTP/HTTP firmware upgrade, LantechTM InstaConfig for multiple upgrade
• System Event Log, SMTP Email alert, SMS mobile (text) og SNMP Trap for alarm support, 32 RMON counters
• SecuritySSL/SSH/ACL L2&L3
• Port Security: MAC address entries/Filter/MAC-Port binding
• IP Security: IP address security management to prevent unauthorized intruder.
• Management access control med priority
• Login Security: IEEE802.1X/RADIUS
• HTTPS for secure access to the web interface
• Static multicast forwarding forward reversed IGMP flow (MVR) med multicast packets binding med porte for IP surveillance application
• Multicast static route for non- IGMP camera to prevent flooding, IGMP router port to assign query in ring og for reversed multicast video flow
• Multicast VLAN registration for metro video
• IGMPv1,v2,v3 med Query mode for multi media, GMRP
• Factory reset button for at gendanne setting til factory default
• Watchdog design for auto reboot switch CPU is found dead
• Optional environmental monitoring for system input voltage, current, ambient temperature
• Supports DIDO (Digital Input/Digital Output)
• IP30 metal housing med DIN rail og Wall-mount design
