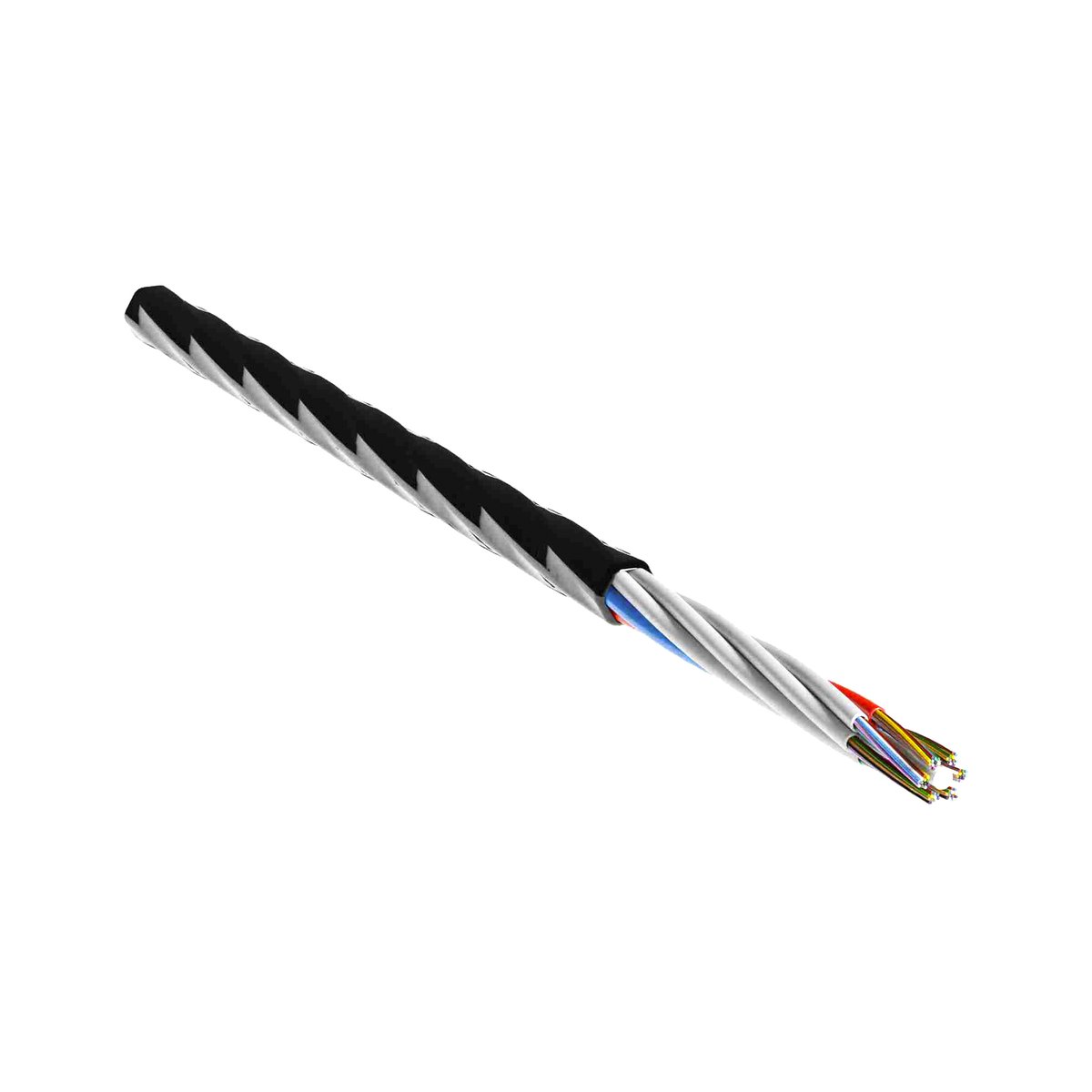

Mikrokabel Viper 48XG657A1 Ø5,7MM T4000 - pr. meter

PRISGARANTI
1000+ stk. på lager
Billigste fragt: GLS Pakkeshop 42,00 kr. (leveres fredag d. 13/12)
Se alle muligheder
MetodePrisLeveres
GLS Pakkeshop42,00 kr.Fredag d. 13/12
GLS Erhverv49,00 kr.Fredag d. 13/12
GLS Hjemmelevering69,00 kr.Fredag d. 13/12
Direkte levering149,00 kr.I morgen
Click&Collect i Svenstrup (9230)0,00 kr.I morgen
Oplyste datoer gælder ved bestilling inden onsdag 15.30
Blæsefiber VIPER F48Tromle størrelse i meter: 0,8x0,58x0,8 4000m/TromleBøjningsradius : 75mmTensile Force installation (N) : 1200Crush (N/100mm) : 2000Vægt : 28kg/kmProduc...
  • Varenr.:
    7884128994
  • EAN nr.:
    5709728958659
  • Typenr.:
    TOL4019028/48AH
39,00 kr.
pr. meter | inkl. moms

Beskrivelse

Blæsefiber VIPER F48Tromle størrelse i meter: 0,8x0,58x0,8 4000m/TromleBøjningsradius : 75mmTensile Force installation (N) : 1200Crush (N/100mm) : 2000Vægt : 28kg/kmProduct ColorBlack sheathColor CodeS12Temperature, Operation -45 to +70Temperature, Storage -45 to +70Temperature, Installation -15 to +50Water BlockingLength water blocking according to IEC 60794-1-2-F5CFiber TypeG657A1Attenuation @Wavelength 1310/1383/1550Typical Attenuation 0.32/0.32/0.18Average Attenuation 0.33/0.33/0.21Maximum Attenuation 0.36/0.36/0.23ConformanceLength water blocking according to IEC 60794-1-2-F5C.Mechanical and environmental test in accordance with IEC 60794-5-10Fiber parameters and tests according to the IEC series 60793-2 and 60793-1MarkingExample of sheath marking, 1 time/meter:“HEXATRONIC A35 Viper yymmddhh TOL4019028/432AH GNHL-U-CDGNRV 432/T12 G657A1 S12 xxxxx m"where yymmddhh = year, month, day and hour of manufacture, xxxxx=running meter markingInstallation NotesTypical installation performance:•Ducts ID 8-10 mm, cable OD =6.7 mm: 2000 m•Ducts ID 12 mm, cable OD =8.0 mm: 2000 m•Ducts ID 15-16 mm, cable OD <11 mm: 2000 m, cable OD 11-12 mm: 1500 mInstallation performance verified on Hexatronic test track, according to IEC 60794. Installation performance is affected by the installed path, environmental conditions, installation equipment etc and actual performance may therefore deviate from the above specified values.If the cable is installed by blowing the temperature shall be -15 to +40°C. The cable shall not be stored in direct sunlight. The sun may heat up the cable over the permitted temperature limit.

Specifikationer

  • Varenummer:
    7884128994
  • EAN nummer:
    5709728958659
    Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
  • Typenummer:
    TOL4019028/48AH
    Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
  • Brand:
    Øvrige
