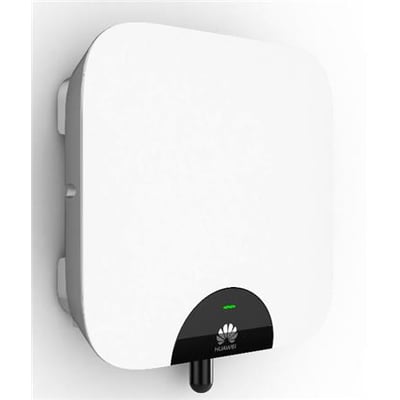

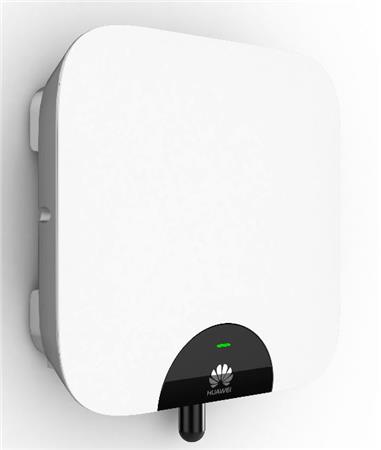

Huawei SUN2000L-3.68KTL L1 inverter

PRISGARANTI
10+ stk. på lager
Billigste fragt: GLS Pakkeshop 56,00 kr. (leveres tirsdag d. 25/6)
Se alle muligheder
MetodePrisLeveres
GLS Pakkeshop56,00 kr.Tirsdag d. 25/6
GLS Erhverv56,00 kr.Tirsdag d. 25/6
GLS Hjemmelevering74,00 kr.Tirsdag d. 25/6
Direkte levering149,00 kr.Mandag d. 24/6
Click&Collect i Svenstrup (9230)0,00 kr.Mandag d. 24/6
Oplyste datoer gælder ved bestilling inden fredag 13.30
Huawei SUN2000-3.68KTL-L1. 1 Transformerløs 1-faset hybridinverter med WLAN, effekt på 3,68 kW. 2 MPP tracker Indbygget WLAN modul Technical Specification SUN2000L-3.
Varenr.:
5478002177
EAN nr.:
5705157329527
Typenr.:
SUN2000 - 3.68KTL-L1
8.094,00 kr.
pr. stk. | inkl. moms

Relaterede varer

Huawei SUN2000-40KTL-M3 inverter 4MPPT
29.150,00 kr.
23,22KWP Solpakke tagpap huawei
114.094,00 kr.
34,4KWP Solpakke eternit huawei
138.754,00 kr.
Huawei fusion EV-CHARGER AC 22KW
7.415,00 kr.
12,04KWP Solpakke eternit huawei
50.936,00 kr.
MediaPad T3 10", Flip Cover, brun
141,00 kr.
Huawei SUN2000-30KTL-M3 inverter 4MPPT
24.441,00 kr.
Huawei SUN2000-20KTL-M5 inverter 2MPPT
22.632,00 kr.
Huawei SUN2000-4KTL-M1 hybrid inverter
10.380,00 kr.
18,06KWP Solpakke tegl huawei
74.868,00 kr.

Beskrivelse

Huawei SUN2000-3.68KTL-L1. 1 Transformerløs 1-faset hybridinverter med WLAN, effekt på 3,68 kW. 2 MPP tracker Indbygget WLAN modul

Technical Specification
SUN2000L-3.68KTL-L1

Input:
Recommended max. PV power 5,520 Wp
Max. input voltage 600 V
Operating voltage range 90 V~ 560 V
The maximum input voltage and operating voltage upper limit will be reduced to 495 V when inverter connects and works with LG battery. (Only applicable for PV string.)

Start-up voltage 100 V
Full power MPPT voltage range 90 V ~ 560 V
Rated input voltage 360 V
Max. input current per MPPT 13 A
Max. short-circuit current 15 A
Number of MPP trackers 2
Max. number of inputs per MPPT 2

Output :
Grid connection Single phase
Rated output power 3,680 W
Max. apparent power 3,680 VA
Rated output voltage 220 V / 230 V / 240 V
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current 16 A
Adjustable power factor 0.8 leading ... 0.8 lagging
Max. total harmonic distortion = 3 %

Efficiency
Max. efficiency 98.4 %
European weighted efficiency 97.3 %

General Data
Operating temperature range -25 ~ +60 °C
(Derating above 45°C @ Rated output power)
Relative operating humidity 0 %RH~100 %RH
Operating altitude 0 - 4,000 m (Derating above 2,000 m)
Cooling = Natural convection
Display LED indicators
Communication RS485, WLAN via inverter built-in WLAN module
Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional)

Weight (incl. mounting bracket) 12.6 kg
Dimension (incl. mounting bracket) 365 * 365 * 140 mm
Degree of protection IP65

Battery Compatibility
LG Chem RESU 7H_R / 10H_R
HUAWEI PowerMate ESS Battery LUNA2000-5/10/15-S0.

Specifikationer

  • Varenummer:
    5478002177
  • EAN nummer:
    5705157329527
    Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
  • Typenummer:
    SUN2000 - 3.68KTL-L1
    Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
  • Brand:
    Huawei
